Concrete Testing Equipments

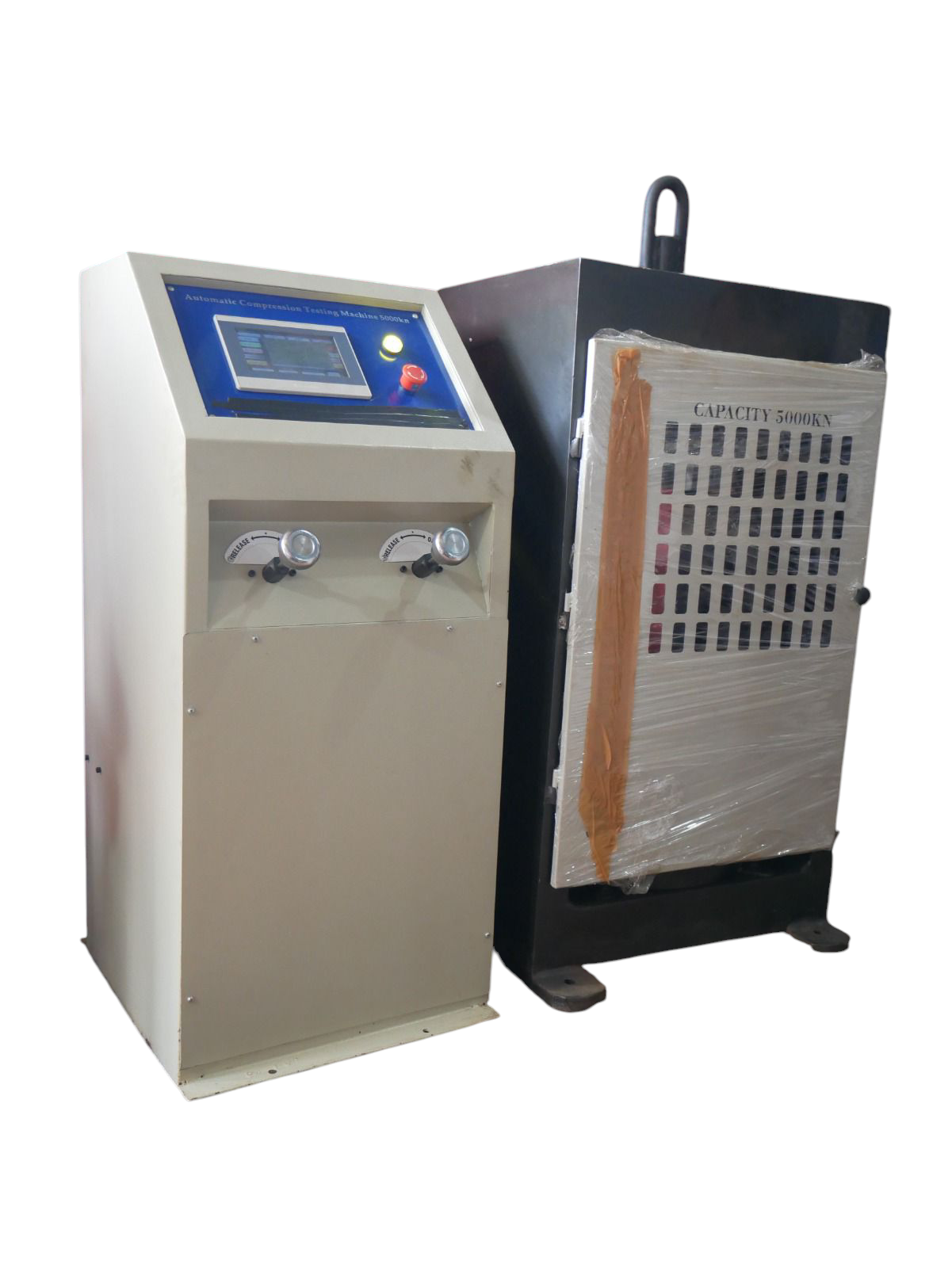

Automatic Compression Testing Machine 5000 kN
Business Type: Manufacturers, Exporters, Suppliers, Retailers, Wholesalers
Make: Setest India
Origin: India
Model No.: SET-1160
We are a leading Manufacturer, Supplier, and Exporter based in Delhi, India, offering high-quality machines for all your compression testing needs. Our Automatic Compression Testing Machine 5000 KN is designed to provide accurate and reliable results for testing the compressive strength of various materials. With advanced features and user-friendly interface, our machine ensures precise testing and efficient performance. Contact us today to get your hands on the best Automatic Compression Testing Machine 5000 KN in the market!
Specification for Automatic Compression Testing Machine 5000 KN:
- Maximum testing force: 5000 KN
- Pace rate control 1 to 10kn/s
- Load measurement range: 1-100% full scale
- Load measurement accuracy: ±1% of the indicated load
- Display: Screen Touch 7 inch display.
- Control system: Fully automatic with microprocessor control
- Safety features: Overload protection, emergency stop button, protective housing
- Specimen size: Up to 300 mm cube
- Power supply: 440V/50Hz
- Dimensions: 1200 x 500 x 1200 mm (L x W x H)
- Weight: Approximately 2500 kg
- Compliance: Conforms to international testing standards
Key Features of the Automatic Compression Testing Machine 5000 KN
- High Capacity: With a capacity of 5000 KN, this testing machine can easily handle a wide range of testing requirements, making it suitable for various applications.
- Automatic Operation: The machine is designed for ease of use, with automated functions that make testing quick and efficient.
- Precision Testing: Se-Test India's Automatic Compression Testing Machine offers precise testing capabilities, ensuring accurate results every time.
- Durable Construction: Built to last, this machine is made from high-quality materials that can withstand the rigors of regular use.
- Versatile Applications: From testing concrete to other building materials, this machine can be used for a variety of testing applications.
| Model | Unit | SET-1139-A | SET-1139-B |
|---|---|---|---|
| Capacity | kN | 3000 | 5000 |
| Standard | IS14858:2000 | IS14858:2000 | |
| Ram dia meter | mm | 250 | 350mm |
| Least Count | kN | 0.1 | 0.1 |
| Ram Travel | mm | 50 | 60 |
| Lower platens dimensions | Mm | Ø280 | 355 |
| Upper platens dimensions | Mm | Ø280 | 355 |
| Maximum vertical | mm | 320 | 350 |
| clearance between platens | Mm | 320 | 350 |
| Horizontal clearance | mm | 380 | 470 |
| Height of Load Frame | Mm | 1200 | 1200 |
| Weight of Load Frame | Kg | 950 | 2500 |
| Specimen Size (Suitable with load frame) | |||
| Cube Mould | mm | 70.6, 100, 150, 200 | 70.6, 100, 150, 200 |
| Cube Mould | mm | 100, 150, 200, 300 | 100, 150, 200, 300 |
Why Choose Se-Test India?
Se-Test India has built a reputation for excellence, providing customers with reliable and accurate testing solutions for years. With their Automatic Compression Testing Machine 5000 KN, you can trust that you are getting a top-of-the-line product that will meet your testing needs with precision and reliability.
Benefits of Using Automatic Compression Testing Machine 5000 KN
- Accurate and reliable test results
- High precision and repeatability
- User-friendly controls for easy operation
- Enhanced safety features for operator protection
- Complies with international standards for quality assurance
Se-Test India's Automatic Compression Testing Machine 5000 KN is a standout product in the field of testing equipment, offering precision, reliability, and durability. With its high capacity and automated functions, this machine is the perfect choice for professionals in various industries. Trust in Se-Test India's reputation for excellence and choose their Automatic Compression Testing Machine for all your testing needs.
