Concrete Testing Lab Equipment

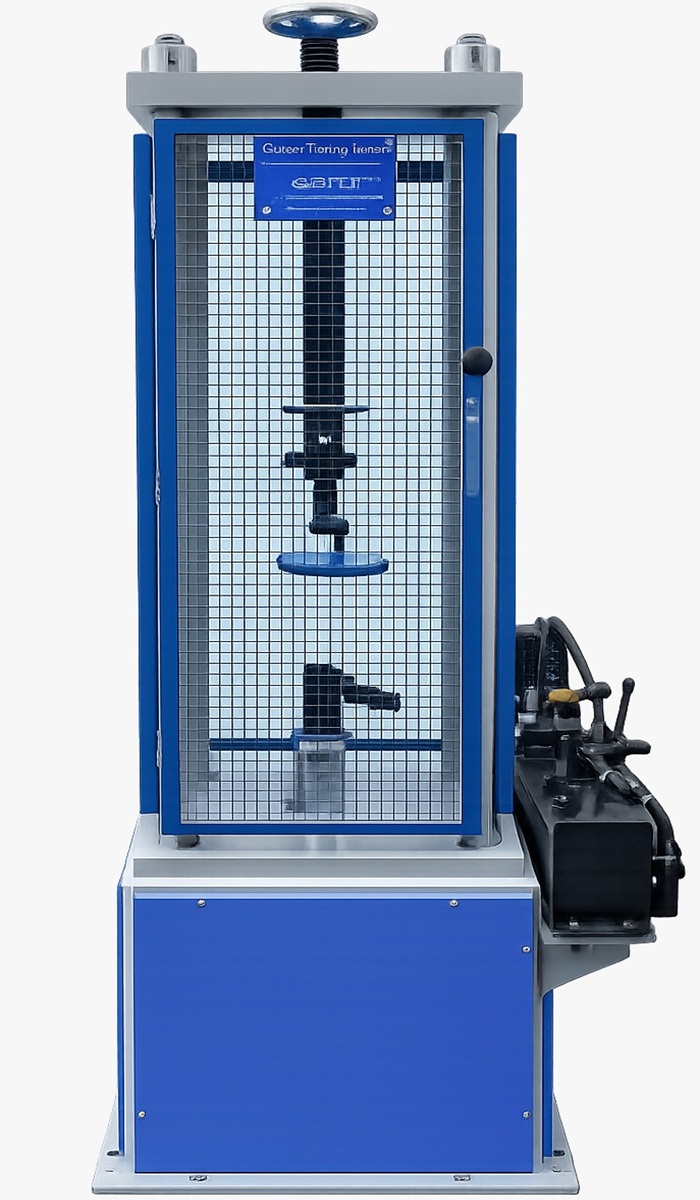

Insulator Testing Machine

Model No.: SET-1320

Load Frame Specification:

Technical Weight
Capacity SWL 10 TON
Capacity SOL 12.5 TON
Recording Gauge SS Burdon
Dial Size 150mm
Least Count 100 kg
Accuracy ±1% FSD

Physical:

Physical Weight
Height 1673 mm
Width 673 mm
Base Dimension 715 mm
Table Height 560 mm
Gap Between Coolum 375 mm
Weight 150kg Aprox

Hydraulic Pump Unit:

  • It’s a Single piston double acting pump.
  • Max Pressure Rage 700 bar (10,000 PSI)

SE-Test India The Porcelain Tensile Insulator Testing Machine is used for testing of railway (traction) insulators, porcelain as well as polymers. These are widely used by several EPC contractors for the Dedicated Freight Corridor (DFC) Project for railway electrification. The equipment provides direct load reading in tonnes and is also operated by means of a compact hydraulic power pack, which ensures faster and easier testing of insulators. We are manufacturing equipment with load testing capacities from 9 tonnes to 100 tons.

Porcelain Tensile Insulator Testing Machine Application:

Porcelain Tensile Insulator Testing Machine can be used in rubber, plastics, wires and cables, textiles, waterproof materials, metal foils, metal plates, metal bars, non-woven fabrics and other non-metallic materials, as well as mechanical properties testing of metal wires. The Civil Lab offers a variety of finished products stretching, shearing, tearing, compression, peeling, bending (folding) tests, as well as various fixtures and print graphical output. There is high control comparison and easy operation, and all kinds of accessories are complete and flexible.

SE-Test India The porcelain tensile insulator testing machine is mainly used for testing mechanical properties of metals such as tensile, compression, bending, and it can also achieve constant stress, constant strain, creep, relaxation, axial, radial, and other kinds of dead-end cycle tests and, according to GB, JIS, ASTM, DIN, and other standards, automatically determine the tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, elastic modulus, and other parameters.

SE-Test India Pvt. Ltd. offers complete range of Insulator Testing Machine in civil engineering and construction sector. We are developed to assist the IDE Insulator Testing Machine engineers and technicians in the detailed analysis of soil samples and derive accurate predictions there from. We are Insulator Testing Machine manufacturers, suppliers and exporters in Delhi, India.
